PROJECTS
SOER (Sequence Of Events Recorder) for LNG Trains, Lhokseumawe, Aceh

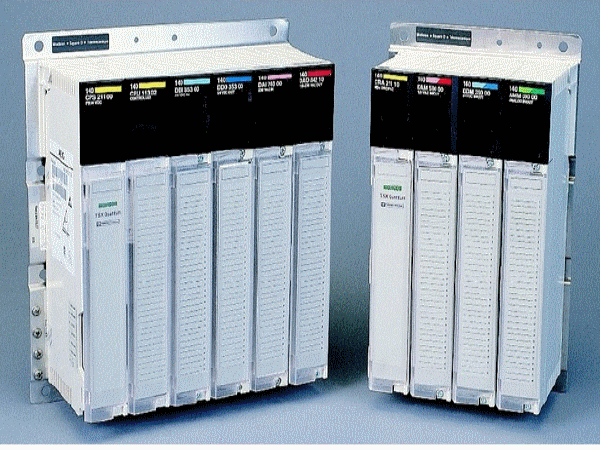

Hardware: Modicon Quantum PLC with DCF77 Capable Time Stamp Digital Input Modules 768 Channels, Satellite Time Receiver etc.
Software : Modicon Unity Pro XL software, Wonderware HMI InTouch Factory Suite, SQL Database for Reports, Engineering, Wiring at Site, Testing, Start-up, Commissioning, SAT etc.
Safety Instrumented System (SIS), SIL3 for Filtration, NH3 Compressor, Furnace Control in Melamine Plant, Bontang
Hardware: 6 HIMA HiQuad H41q -HS SIL3 System with Cabinets, Marshaling Racks, Cabling, H41q-HS Simulator Cubicle.
Software : HIMA ELOP II Software, Engineering Work Station (EWS), Modbus, OPC DA Server, OPC AE Server Communications to Rosemount Delta-V DCS, Wiring, Testing, Start-up, Program Development, Validation, Commissioning, SAT in accordance with IEC60511 FS Standards etc.
Retrofit Rubber Tyre Gantre Cranes Controls in Sea Container Crane Terminal, Tanjung Priok, Jakarta Utara
Hardware: SIEMENS Simatic S7-315DP Terminal, MP 370 Touch Panels, ET200M RIO Cabinets, Profibus DP Network, VFDs with Inter-bus Interface, Loadcell Measuring etc.
Software : SIEMENS Step7 Programming Software, WinCC Flexible for TP Configuration, Program Development, Commissioning, SAT etc.
Retrofit Upgrade HIMA H51-HS DOS based System to HIMA HiQuad H51q-HRS in Methanol Plant, Bontang
Hardware: 3 HIMA HiQuad H51q-HRS Fully Redundant System, Marshaling Satellite Cabinets, H51q-HRS Simulators, Engineering Work Station, SOER Station, HiBus Safety-related SIL3 Data Communications Network etc.
Software : HIMA ELOP II Programming Software, Wizcon SOER Station from Emation, Program Development, Commissioning, SAT etc.

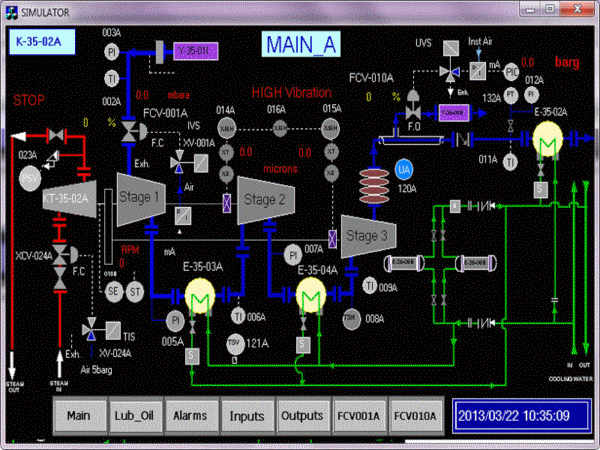

PLC System for Plant Air Compressor Protection System, Oil Refinery Unit, Balikpapan
Hardware: 3 HIMA HiQuad H41q-H Redundant CPUs, Redundant Power Supplies, Redundant Communications, Modbus RS485 Network, CIMON Touch Panel 10", IP65 Outdoor Cabinet, Cable Tray and Cable Laying, Field Instrumentation, Vibration Analyzers etc.
Software : HIMA ELOP II Programming Software, CIMON Software for Graphics, Program Development for Compressor Control and Protection, Anti-surge Control, Commissioning, SAT etc.

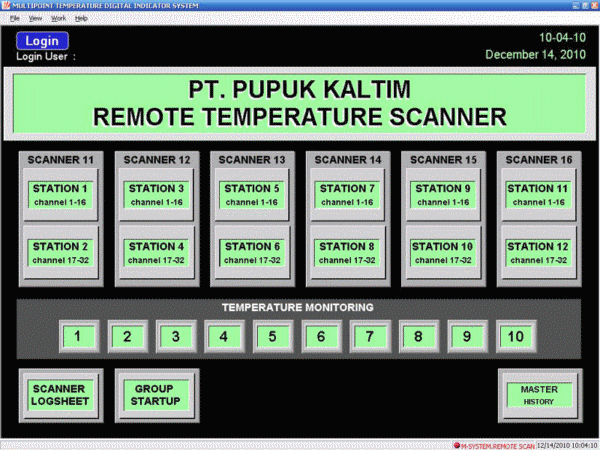

Multpoint Temperature Scanner for Ammonia Plant for Fertilizer Plant, Bontang
Hardware: Remote Data Acquisition Temperature Scanner Modules in RS-485 in Daisy Chain / Star Topology over 800 meters in length with Modbus Protocol.
Software : 19" Industrial Grade PC, CIMON Graphics Software for Indication, Alarm, Trending and History.
Hardware and Software Modifications for Emergency Shutdown System (ESD) for Offshore Oil Well Platform in Oil Fields, TOTAL E&P Indonesie, Kalimantan Timur
Hardware: HIMA HiQuad H51q-HRS SIL3 Systems Wiring.
Software : HIMA ELOP II Software SIL3 Program Developement. Modbus Memory Mapping to Wonderware Local Node and Remote Node via Modbus TCP Radio Network, Validation, Testing as per IEC61511 for Functional Safety.

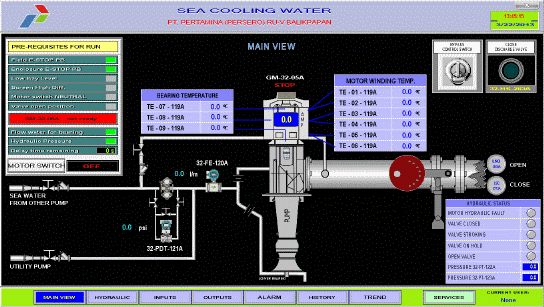

PLC System for Sea Cooling Water Pump Controls 3 x 1000KW with MV Operation in Refinery Unit V, Balikpapan.
Hardware: HIMA HiQuad H41q-H Systems Cabinet, Outdoor Local SS316 Cabinets, Solenoid Operation for REXROTH Hydraulic Drive for Non-return Valves with counter, CIMON Touch Panel, Modbus Networking to HMI, EWS etc.
Software : HIMA ELOP II Software Program Development. Modbus Memory Mapping to Touch Panel and Redundant Wonderware SCADA Node and Remote Node c/w Installation, Commissioning, SAT etc.
Retrofit Upgrade of Safety PLC HIMA H51q-HS for Burner Management System in BP Tangguh Oil Fields
Hardware: HIMA HiQuad H51q-HS System with Ethernet Network addition and Redundant Link via Modbus TCP to DCS or Centralized Monitoring.
Software : HIMA ELOP II Software Program Conversion. Modbus Memory Mapping etc.
