PROJECTS

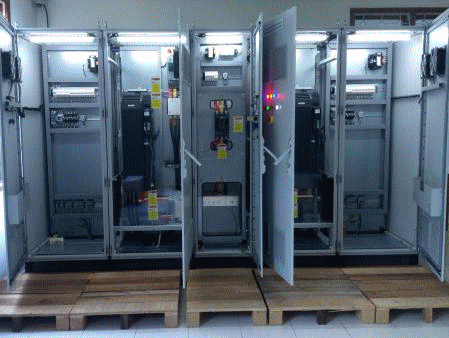

Safety PLC with VSD for Cryogenic Return Gas Blower at Nusa Tenggara Barat

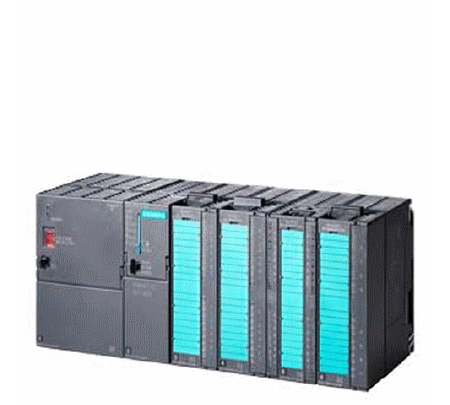

Hardware: SIEMENS Simatic S7-300 Fail Safe Module, Sinamics G120 VFD 160kW, CIMON 10" Xpanel, Output Reactor, Motor Contactor, Thermistor Protection Relay, Residual Current Monitoring Relay,
Software : SIEMENS Simatic Step7 Safety, CIMON Canvas
* members only

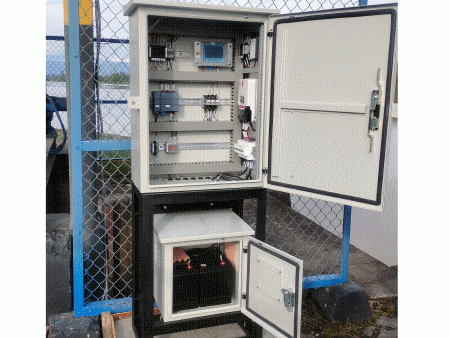

Irrigation Gate Monitoring and Control System (IoT Telemetri SCADA) in South Sulawesi
Hardware: SIEMENS Simatic S7-1200, 4G Router. 4" Touch Panel, Solar Panel System, Backup Battery, Gate Position, Water Level Sensor, Gate Actuator, Visual Sensor, CCTV Camera, Broadband Network, Network Video Recorder, Operator Desktop PC and Monitor Screen.
Software : SIEMENS Simatic Step7, HMI Basic Panel, MQTT,
* members only
* members only

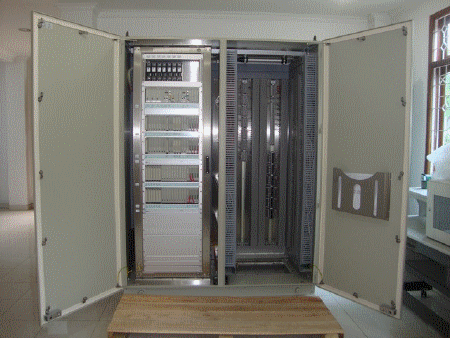

ATEX Certified Ex Zone 2, SIL3 Emergency Shutdown System (ESD) / Fire & Gas System (F&GS) for Off-Shore Gas Platform in Bekapai Gas Fields for TOTAL E&P Indonesie (Currently belongs to PERTAMINA), Kalimantan Timur
Hardware: 2 x HIMA H51q-HRS fully Redundant (CPU, PSM, Communications, I/Os etc.), Wireless Communication to PCS via NAT (Network Address Translation), for Explosion Hazardous Area EX Zone 2 certified by Notified Body from Europe.
Software : HIMA ELOP II HiQuad TUV Certified Software for Programming, Modbus TCP Protocol and Address Mapping to Cytech SCADA, FAT, IFAT, Training, Installation and Commissioning Assistance.
* members only

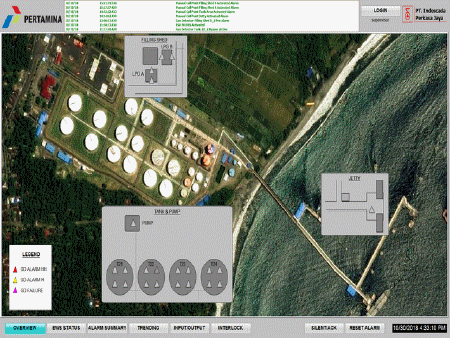

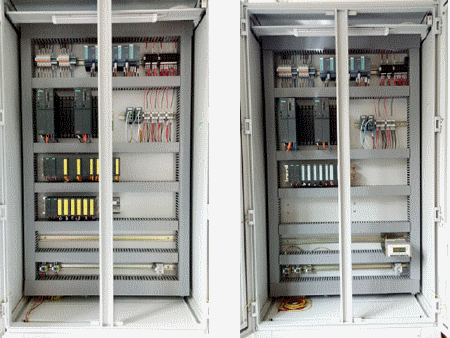

Early Warning System (EWS) for LPG Tank for Storage and Transfer to LPG Filling Station, Bali
Hardware: SIEMENS Simatic S7-412H/FH Redundant CPU Stations, Profibus DP Network with ET200M Remote I/O, Modbus RS-485 Interface to Tank Gauging System, Flow Metering System, Filling Station and MOV (Motorized Operator Valve) Digital Control through Serial Link, Weighing Bridge, PLC Cabinets.
Software : SIEMENS Simatic TIA Portal, WinCC HMI, S7 OPC, Modbus Serial / TCP/IP Protocol, Engineering Work Station (EWS), Modbus, Programming for MOV Operation for Transfer of LPG from Jetty to Storage Tanks, for Inter Tanks operation, to Filling Station, for Evacuation etc. Panel Fabrication, Assembly, Wiring, Testing, Start-up, Program Development, Validation, Commissioning, SAT etc.
* members only

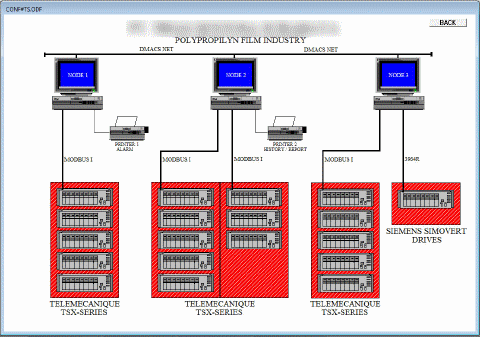

Process Control System for Polypropylene Film Industry, Surabaya
Hardware: 4 Telemechanique TSX-87 PLCs (3000 I/O)
XBT Operator Consoles 14” with Touch screen, 2 XBT Text Display Units
Software: 3 Intellution SCADA Systems + 3 PCs with 21” Monitors, Distributed Networking Hardware 5000 I/O Tags, Receipt Package, Production Report in MS EXCEL, MODBUS PROTOCOL for Telemechanique TSX–87 Series PLCs, 3964r Protocol for SIEMENS SIMATIC S5-135 PLCs
* members only

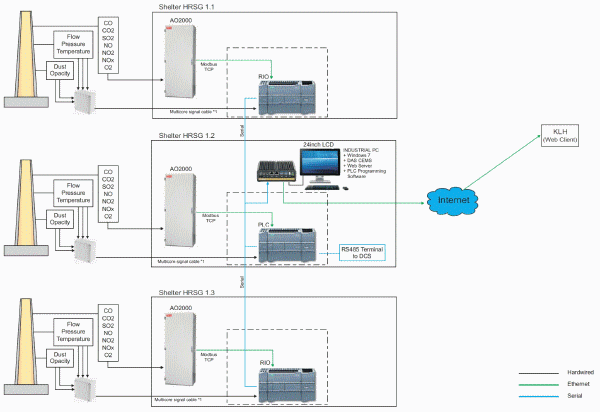

CEMS (Continuous Emission Monitoring System) for 3 Streams, measuring CO, O2, SO2, NOx, NO, NO2, Dust, Opacity, Flow using ABB Analyzer AO2000 for a Power Plant in Semarang

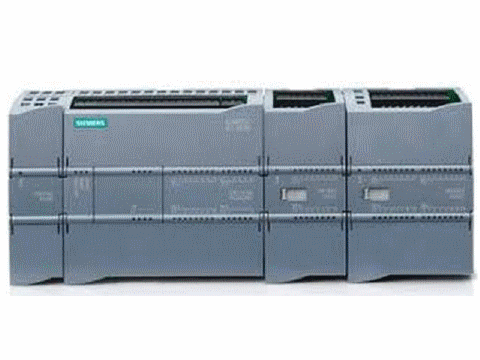

Hardware: S7-1200 series PLCs with modbus TCP and RTU communication to Industrial PC, Provide Web Server Operator Interface with Data Logging and Reporting, PLC Enclosures, Operator Desk, Printer and installation.
Software : SIEMENS Simatic Step7, WebAccess Scada.
* members only
PLC Control System for 3 Stream Plant (3 x 50m3/hr) for Demin Water Plant, Purwakarta
Hardware: IDEC PLC, Cabinet, Marshaling
Software: FIX SCADA Node

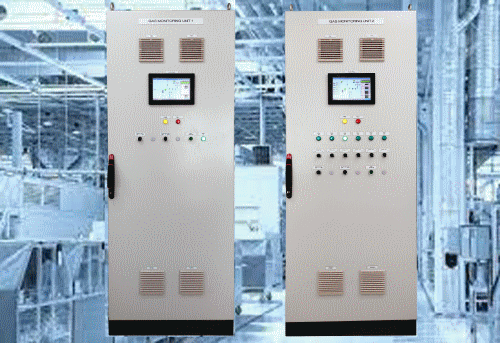

Gas Analyzer cabinet complete with sampling system for CO, O2 using ABB Analyzer EL3040 with multi stream sampling system in Coal Mill Semen Padang
Hardware: S7-1200 series PLCs with modbus communication to Operator Touch Panel Interface with web based server, complete with solenoid valves, filter, Sampling Gas Cooler, PLC Enclosures, , and installation.
Software : SIEMENS Simatic Step7, C-More HMI from AumationDirect USA
* members only
* members only
* members only

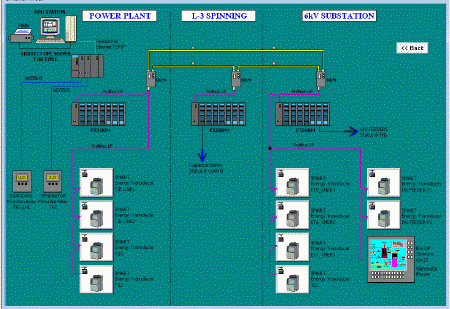

Load Management System for Rayon Fibre and Chemical Plant, Purwakarta
Hardware: Siemens Simatic S7-315 DP2, CP343-1, CP341 with ET200m Distributed I/O, Interconnecting Generator House, Turbine Plant, PLN Distribution Feeder at Main Substations and Satellite Substation, Intelligent Energy Devices (IEDs) in combination of FO Multimode Network, Cat.5 Cable, RS485 Serial Cable etc.
Software: Siemens Simatic Step7 PLC Programing for Load Shedding during Grid Failure, Automatic Start of Standby Generators, Steam Venting for quick Power Generation to add buffer power, Load Differing/Sequence Control, preventing large loads which have entered critical process phase, Turbine Start-up Logic, Interrupt Control Logic, Load Tripping Snap Shot Logging.
2 Wonderware InTouch Factory Suite SCADA Nodes with Graphic Animation, Historical Alarms and Trending. Multiple Protocols for Communication: Siemens Simatic S7 Ethernet, Modbus RS485, Profibus DP etc. c/w FAT, Installation and Commissioning.
* members only

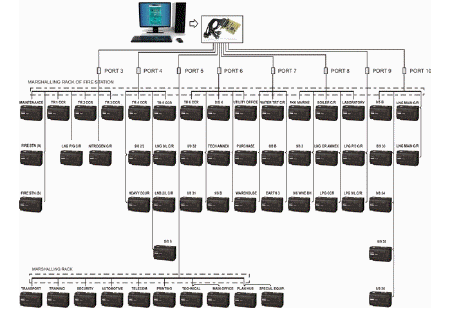

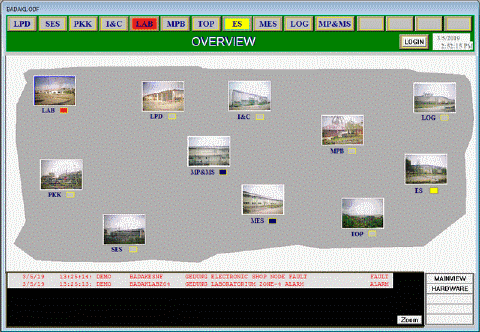

Fire Alarm System for LNG Plant, Lhokseumawe
Hardware: 53 BRODERSEN RTU8 Hardware, Fire, Smoke, Gas Detectors distributed in 700 zones (non addressable), RS-485 cables, Patton short Haul Modems Interface, Twisted pair cable network up to 8Km radius; 2000 I/Os.
Software : Modbus HMI Wonderware, Modbus Protocol, PC with Multiport Digiboard in PCI Slots.
* members only
Fire Gas Alarm System for Plant Support Facilities, LNG Plant, Bontang
Hardware: Nittan Fire Panels with addressable / semi-addressable sensors, Networking using telephone cables, Short Haul modems, FO Network Cables and FO / Serial RS485 Converter.
Software : HMI Wonderware, Modbus Protocol, PC with Multiport Digiboard in PCI Slots.
* members only
Water Treatment and Demin Plant in Pulp & Paper Plant, Karawang
Hardware: S7-314 PLC with OP3 Text Dispaly, PLC Cabinets, Marshalings, Relay boards.
Software : SIEMENS Simatic Step7, ProTool HMI etc.
.jpg)
Boiler Monitoring HMI for Power Plant (IPP) in Karawang
Hardware: Networking of Boiler Control PLCs Siemens S5-95U PLCs and SINEC L2 Network (currently known as Profibus DP) with converters and cabling.
Software : iFix HMI Intellution SCADA Node, Applicom Digiboard with DDE Driver, 300 Tags, Excel reports.
.png)
Safety Instrumented System (SIS) for Formulation Plant in Manufacturing Process of Pesticide/Insecticide/Crop Science in Surabaya
Hardware: HIMA HiQuad H41q-MS System Retrofit, Upgrade, Additional Hardware for Production/Equipment addition, Profibus DP Communication to WinCC, Maintenance Support etc.
Software : HIMA ELOP II Software, Profibus DP Communication Setup etc.
* members only
Weighing Controller for Warehouse Conveying in Polymer Chip Plant, Purwakarta
Hardware: SIEMENS Simatic S7-200 Series PLC, OP200 Text Display, Digital Weighing cell Transmitter, Junction boxes etc.
Software : SIEMENS MicroWin Sequence Logic for Weighing and Conveying. Modbus Digital Communication to Loadcells Smart Digital Transmitter.
Alarm Annunicator in Polymer Chip Plant in Purwakarta
Hardware: SIEMENS Simatic S7-200 PLCs with LED Lamp Matrix 72 Channels, Enclosures with Terminations etc.
Software : SIEMENS Simatic MicroWin, ProTool for Text Display.
